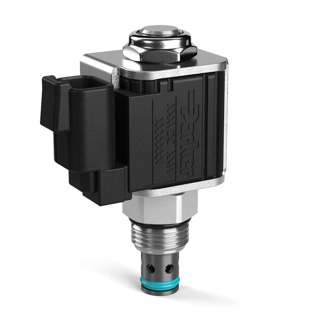

DSH081NT seat valve 2/2, normally open, w/man. over
$491.41
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
Looking for a reliable valve that’s both high-performing and easy-to-use. Look no further than the DSH081NT seat valve. Whether you need to check flow in one direction or enjoy free flow in the other, this valve has you covered. With normally-open or normally-closed configurations available, it’s adaptable to meet your needs.
Plus, it’s built tough: capable of handling up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm), the DSH081NT delivers where other valves fall short. And best of all, its low leakage design means minimal waste and maximum efficiency. Choose the DSH081NT seat valve for an unbeatable combination of performance and convenience.
Additional information
Product Specifications
| Part Number | DSH081NT | Brand | Parker |
| Configuration | Normally Open | Flow Direction | Side to Nose (2-1) |
| Division | Hydraulic Cartridge Systems Division | Free Reverse Flow | No |
| Function | 2-way | Override Functionality | Push and Twist |
| Wire Mesh Screen Included | No | Seal Material | D-Ring (Standard) |
| Valve Material | All parts steel. All operating parts hardened steel | Maximum Operating Pressure | 350 bar | 5000 psi |
| Flow Rate | 8 Gal/min | 8 GAL/MIN, 30 L/MIN | 30 L/min | Maximum Flow Rate | 8 Gal/min | 30 L/min |
| Leak Rate | 5 drops/min | Maximum Inlet Pressure Rating | 350 bar | 5000 PSI, 350 BAR | 5000 psi |
| Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 | Cavity Size | C08-2 |
| Minimum Operating Temperature | -35 °F | -37 °C | Operating Temperature | -35 to +200 °F | -37 to +93 °C |
| Maximum Operating Temperature | +93 °C | +200 °F | Response Time | 50 ms |
| Installation Torque | 32-36 lb-ft | 43-49 Nm | Coil Nut Tightening Torque | 5-7 lb-ft | 7-10 Nm |
| Actuation Type | Electrical, Manual | Coil Type | 1/2″ Super Coil |
| Operation Type | Solenoid operated, Manually operated | Mounting Type | Screw in cartridge valve |
| For Fluid Type | Mineral-based or synthetic hydraulic fluids | Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) |
| Input Voltage | 85% of rated voltage at 72°F (20°C) min | Weight | 0.11 kg | 0.25 lb |
