DSH081NRT PTC 2/2 N.O. w/man.Vride
$1,126.34
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description

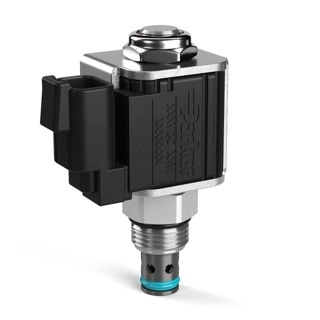

The DSH081NRT PTC 2/2 N.O. Parker’s solenoid valves control flow in one direction and allow free flow in the opposite direction. They are available in normally-open or normally-closed configurations and can handle pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm) with low leakage.
Additional information
Product Specifications
| Part Number | DSH081NRT | Brand | Parker |
| Configuration | Normally Open | Flow Direction | Side to Nose (2-1) |
| Division | Hydraulic Cartridge Systems Division | Free Reverse Flow | Yes |
| Function | 2-way | Override Functionality | Push and Twist |
| Wire Mesh Screen Included | No | Seal Material | D-Ring (Standard) |
| Valve Material | All parts steel. All operating parts hardened steel | Maximum Operating Pressure | 350 bar | 5000 psi |
| Flow Rate | 8 Gal/min | 8 GAL/MIN, 30 L/MIN | 30 L/min | Maximum Flow Rate | 8 Gal/min | 30 L/min |
| Leak Rate | 5 drops/min | Maximum Inlet Pressure Rating | 350 bar | 5000 PSI, 350 BAR | 5000 psi |
| Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 | Cavity Size | C08-2 |
| Operating Temperature | -35 to +200 °F | -37 to +93 °C | Minimum Operating Temperature | -35 °F | -37 °C |
| Maximum Operating Temperature | +93 °C | +200 °F | Response Time | 50 ms |
| Coil Nut Tightening Torque | 5-7 lb-ft | 7-10 Nm | Installation Torque | 32-36 lb-ft | 43-49 Nm |
| Actuation Type | Electrical, Manual | Operation Type | Solenoid operated, Manually operated |
| Coil Type | 1/2″ Super Coil | Mounting Type | Screw in cartridge valve |
| For Fluid Type | Mineral-based or synthetic hydraulic fluids | Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) |
| Input Voltage | 85% of rated voltage at 72°F (20°C) min | Weight | 0.11 kg | 0.25 lb |
