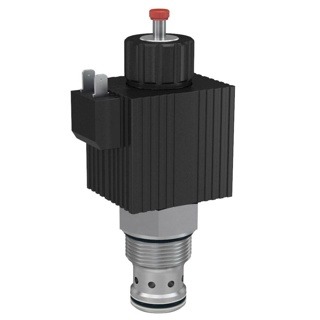

DS162C PTC 2/2 valve N.C.
$829.18
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
Parker’s DS162C PTC 2/2 valve is a direct-acting solenoid valve with a 2-way, 2-position spool design. It is capable of handling flows up to 75 lpm (20 gpm) and pressures of up to 350 bar (5000 psi). This valve is available in both normally-closed and normally-open configurations.
Additional information
Product Specifications
| Part Number | DS162C | Brand | Parker |
| Configuration | Normally Closed | Division | Hydraulic Cartridge Systems Division |
| Function | 2-way | Override Functionality | Push |
| Wire Mesh Screen Included | No | Seal Material | Nitrile |
| Valve Material | All parts steel. All operating parts hardened steel | Maximum Operating Pressure | 210 bar | 3000 psi |
| Flow Rate | 20 Gal/min | 20 GAL/MIN, 75 L/MIN | 75 L/min | Leak Rate | 240 CC/min @ 3000 PSI (210 BAR) cm3/min |
| Maximum Flow Rate | 20 Gal/min | 75 L/min | Maximum Inlet Pressure Rating | 210 bar | 3000 PSI, 210 BAR | 3000 psi |
| Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 | Cavity Size | C16-2 |
| Maximum Operating Temperature | +250 °F | +121 °C | Minimum Operating Temperature | -34 °C | -30 °F |
| Operating Temperature | -30 to +250 °F | -34 to +121 °C | Response Time | 90 ms |
| Installation Torque | 40 lb-ft | 54 Nm | Coil Nut Tightening Torque | 3 lb-ft | 4.1 Nm |
| Actuation Type | Electrical, Manual | Coil Type | 1″ DS Coil |
| Operation Type | Solenoid operated, Manually operated | For Fluid Type | Mineral-based or synthetic hydraulic fluids |
| Mounting Type | Screw in cartridge valve | Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) |
| Input Voltage | 85% of rated voltage at 72°F (20°C) min | Weight | 0.59 kg | 1.3 lb |
