DM104K1 PTC-4/2 valve manual
$795.85
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description

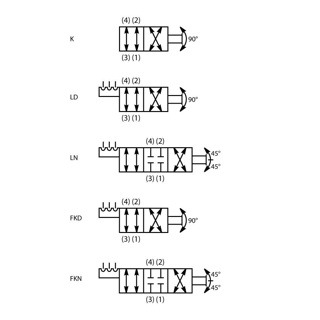

Introducing Parker’s DM104K1 PTC-4/2 valve, a manually operated 4-way, 2 or 3-position directional control spool valve designed for North American markets. This valve is capable of handling flows up to 7.5 lpm (2 gpm) and pressures up to 240 bar (3500 psi), and it comes with knob and lever actuators with detents.
Additional information
Product Specifications
| Part Number | DM104K1 | Brand | Parker |
| Rotation Angle | 90 ° | Configuration | Knob |
| Division | Hydraulic Cartridge Systems Division | Function | Spool Type |
| Seal Material | Nitrile | Valve Material | All parts steel. All operating parts hardened steel |
| Maximum Tank Pressure | 34.5 bar | 500 psi | Maximum Operating Pressure | 240 bar | 3500 psi |
| Maximum Flow Rate | 2 Gal/min | 7.5 L/min | Flow Rate | 2 Gal/min | 7.5 L/min |
| Leak Rate | 164 @ 3500 PSI (240 BAR) cm3/min | Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 |
| Maximum Inlet Pressure Rating | 240 bar | 3500 psi | Cavity Size | C10-4 |
| Maximum Operating Temperature | +250 °F | +121 °C | Minimum Operating Temperature | -34 °C | -30 °F |
| Operating Temperature | -30 to +250 °F | -34 to +121 °C | Installation Torque | 16 lb-ft | 22 Nm |
| Spool Type | Closed Center | For Fluid Type | Mineral-based or synthetic hydraulic fluids |
| Operation Type | Manual | Actuation Type | Rotary |
| Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) | Weight | 0.11 kg | 0.3 lb |
