DH103A16 Hydr. Operated 3/2 PTC valve N.C. 11 bar
$402.09
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description

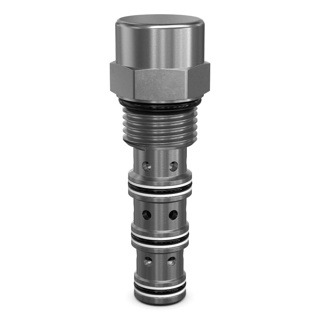

The DH103A16 is a 3-way Pilot Operated, Threaded Cartridge Spool Valve designed for remote pilot actuation in normally closed or normally open directional control three way circuits. It features hydraulic operation, operates at 11 bar, and is intended for use in North America only.
Additional information
Product Specifications
| Part Number | DH103A16 | Brand | Parker |
| Configuration | Normally Open | Flow Direction | 2-3 Neutral, 3-4 Piloted |
| Division | Hydraulic Cartridge Systems Division | Function | Directional Control |
| Pilot Location | External | Seal Material | Nitrile |
| Valve Material | All parts steel. All operating parts hardened steel | Drain Option | Vent to Atmosphere |
| Switching Pressure | 160 PSI, 11 BAR | 11 bar | 160 psi | Maximum Operating Pressure | 240 bar | 3500 psi |
| Flow Rate | 10 Gal/min | 10 GAL/MIN, 38 L/MIN | 38 L/min | Leak Rate | 50 @ 3500 PSI (240 BAR) cm3/min |
| Maximum Flow Rate | 10 Gal/min | 38 L/min | Maximum Inlet Pressure Rating | 240 bar | 3500 psi |
| Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 | Cavity Size | C10-4 |
| Operating Temperature | -30 to +250 °F | -34 to +121 °C | Maximum Operating Temperature | +250 °F | +121 °C |
| Minimum Operating Temperature | -34 °C | -30 °F | Installation Torque | 16 lb-ft | 22 Nm |
| Operation Type | Pilot operated | Actuation Type | Pilot to shift |
| For Fluid Type | Mineral-based or synthetic hydraulic fluids | Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) |
| Weight | 0.23 kg | 0.5 lb |
