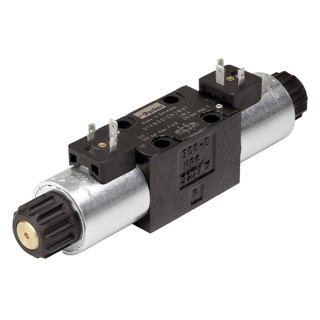

D1VW008CNJW directional NG6/24VDC
$976.14
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
The D1VW008CNJW is a top-of-the-line on/off valve that brings high functional limits and low energy consumption to your NG06 system. This valve is available with a soft shift option and explosion-proof certification to meet your exact needs. Experience reliable performance and effortless operation.
Additional information
Product Specifications
| Part Number | D1VW008CNJW | Brand | Parker |
| Product Series | Directional control valve | Spool Code | 008 |
| Port Connection | NG06 / CETOP 03 | Division | Industrial Systems Division Europe |
| Function | 2-Way | Seal Material | NBR |
| Body Material | Cast iron | Solenoid Option | Standard |
| Spool Position | 3 positions, spring offset in position 0, operated in position a or b | Mounting Position | Unrestricted, preferably horizontal |
| Maximum Operating Pressure | 350 bar | Maximum Flow Rate | 50 L/min |
| Maximum Operating Temperature | 60 °C | Minimum Operating Temperature | -25 °C |
| Actuation Type | Solenoid | For Fluid Type | Hydraulic oil according to DIN 51524 |
| Mounting Type | Subplate mounting | Connection Type | Connector as per EN 175301-803 |
| Operation Type | Direct | Input Voltage | 24 VDC |
| Weight | 2.1 kg |
