D1vw004enjee directional NG6 ex
$2,020.56
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description

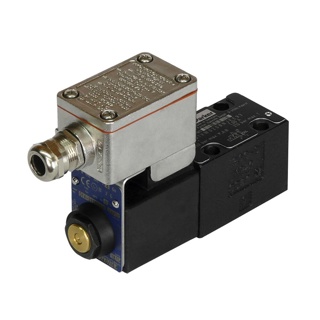

Upgrade your hydraulic system with the D1VW NG06 (CETOP 03) valve- perfect for high-functionality with minimal energy consumption. Choose between the smooth soft shift option or the explosion-proof ATEX and IECEx versions for ultimate customization.
Additional information
Product Specifications
| Part Number | D1VW004ENJEE | Brand | Parker |
| Product Series | Directional control valve | Spool Code | 004 |
| Port Connection | NG06 / CETOP 03 | Division | Industrial Systems Division Europe |
| Function | 2-Way | Seal Material | NBR |
| Body Material | Cast iron | Solenoid Option | Explosion proof solenoids Ex e mb II T4Gb + IECEx conformity |
| Spool Position | 2 positions, spring offset in position 0, operated in position a | Mounting Position | Unrestricted, preferably horizontal |
| Maximum Operating Pressure | 350 bar | Maximum Flow Rate | 60 L/min |
| Maximum Operating Temperature | 60 °C | Minimum Operating Temperature | -20 °C |
| Connection Type | Explosion proof with cable glands | Actuation Type | Solenoid |
| For Fluid Type | Hydraulic oil according to DIN 51524 | Mounting Type | Subplate mounting |
| Operation Type | Direct | Input Voltage | 24 VDC |
| Weight | 1.8 kg |
