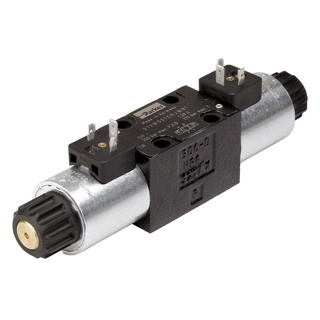

D1VW002CNJW directional NG6/24VDC
$863.58
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
The D1VW002CNJW is a powerful on/off valve that delivers exceptional performance with minimal pressure drop, thanks to its NG06 (CETOP 03) design. It boasts impressive energy-saving capabilities and can be customized with either a soft shift option or an explosion-proof version to meet your specific needs. Plus, it’s fully compliant with ATEX and IECEx regulations for added peace of mind.
Additional information
Product Specifications
| Part Number | D1VW002CNJW | Brand | Parker |
| Product Series | Directional control valve | Spool Code | 002 |
| Port Connection | NG06 / CETOP 03 | Division | Industrial Systems Division Europe |
| Function | 3-Way | Seal Material | NBR |
| Body Material | Cast iron | Solenoid Option | Standard |
| Spool Position | 3 positions, spring offset in position 0, operated in position a or b | Mounting Position | Unrestricted, preferably horizontal |
| Maximum Operating Pressure | 350 bar | Maximum Flow Rate | 80 L/min |
| Maximum Operating Temperature | 60 °C | Minimum Operating Temperature | -20 °C |
| Actuation Type | Solenoid | Mounting Type | Subplate mounting |
| For Fluid Type | Hydraulic oil according to DIN 51524 | Connection Type | Connector as per EN 175301-803 |
| Operation Type | Direct | Input Voltage | 24 VDC |
| Weight | 2.1 kg |
