Product Description

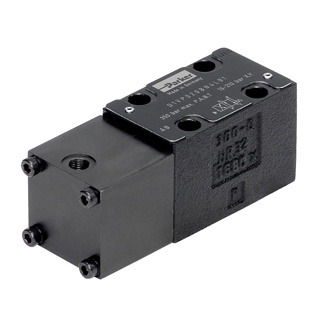

The D1VP030HN9091 series of hydraulically operated directional control valves ensures safe and smooth shifting with a wide range of spool options. Suitable for NG06 / CETOP 03 / NFPA D03 and NG10 / CETOP 05 / NFPA D05 applications.
Additional information
Product Specifications
| Part Number | D1VP030HN90 | Brand | Parker |
| Product Series | Directional control valve | Spool Code | 30 |
| Port Connection | NG06 / CETOP 03 | Division | Industrial Systems Division Europe |
| Function | 2-way | Seal Material | NBR |
| Body Material | Cast iron | Spool Position | 2 positions, spring offset in position a, operated in position b |
| Mounting Position | Unrestricted, preferably horizontal | Maximum Operating Pressure | 350 bar |
| Maximum Flow Rate | 60 L/min | Maximum Operating Temperature | 60 °C |
| Minimum Operating Temperature | -25 °C | Pilot Port Type | Direct via X, Y or pipe thread G1/4 |
| Actuation Type | Hydraulically operated | For Fluid Type | Hydraulic oil according to DIN 51524 |
| Mounting Type | Subplate mounting | Operation Type | Direct |
| Weight | 1.3 kg |
