Product Description

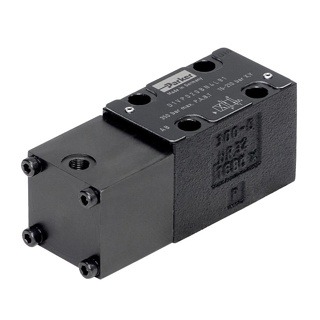

The D1VP030DN9091 is a series of hydraulically operated directional control valves that offer safe shifting and a wide range of spool options. Available in NG06 / CETOP 03 / NFPA D03 and NG10 / CETOP 05 / NFPA D05 sizes.

Additional information

Product Specifications

Part Number D1VP030DN90 Brand Parker
Product Series Directional control valve Spool Code 30
Port Connection NG06 / CETOP 03 Division Industrial Systems Division Europe
Function 2-way Seal Material NBR
Body Material Cast iron Mounting Position Unrestricted, preferably horizontal
Spool Position 2 positions, detent, operated in position a or b, no center, no offset postion Maximum Operating Pressure 350 bar
Maximum Flow Rate 60 L/min Minimum Operating Temperature -25 °C
Maximum Operating Temperature 60 °C Pilot Port Type Direct via X, Y or pipe thread G1/4
Actuation Type Hydraulically operated Mounting Type Subplate mounting
For Fluid Type Hydraulic oil according to DIN 51524 Operation Type Direct
Weight 1.3 kg
