Product Description

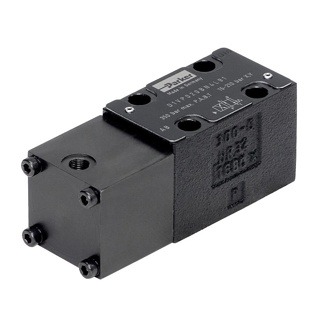

Experience safety and versatility with the hydraulically operated directional control valves series D1VP and D3DP. These valves offer a wide range of spool options, making shifting smooth and secure. Available in NG06/CETOP 03/NFPA D03 and NG10/CETOP 05/NFPA D05 sizes.
Additional information
Product Specifications
| Part Number | D1VP001CN90 | Brand | Parker |
| Product Series | Directional control valve | Spool Code | 1 |
| Port Connection | NG06 / CETOP 03 | Division | Industrial Systems Division Europe |
| Function | 3-way | Seal Material | NBR |
| Body Material | Cast iron | Spool Position | 3 positions, spring offset in position 0, operated in position a or b |
| Mounting Position | Unrestricted, preferably horizontal | Maximum Operating Pressure | 350 bar |
| Maximum Flow Rate | 60 L/min | Minimum Operating Temperature | -25 °C |
| Maximum Operating Temperature | 60 °C | Pilot Port Type | Direct via X, Y or pipe thread G1/4 |
| Mounting Type | Subplate mounting | Actuation Type | Hydraulically operated |
| For Fluid Type | Hydraulic oil according to DIN 51524 | Operation Type | Direct |
| Weight | 1.3 kg |
