D1vlb020dv4j91
$1,415.32
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description

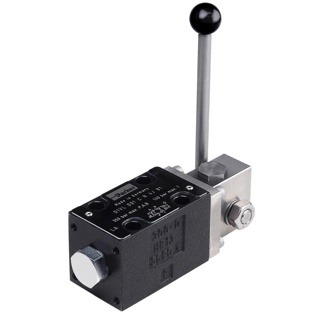

Experience high flow and a wide range of spool options with the D1VL (NG06/CETOP 03/NFPA D03) and D3DL (NG10/CETOP 05/NFPA D05) direct operated directional control valves series, complete with a convenient hand lever.
Additional information
Product Specifications
| Part Number | D1VLB020DV4J | Brand | Parker |
| Product Series | Directional control valve | Actuation | Hand lever side A |
| Spool Code | 020 | Port Connection | NG06 / CETOP 03 |
| Division | Industrial Systems Division Europe | Function | 2-way |
| Seal Material | FPM | Body Material | Cast iron |
| Switching Option | Center of rotation below spool axis | Mounting Position | Unrestricted, preferably horizontal |
| Spool Position | 2 positions, detent, operated in position a or b, no center, no offset position | Maximum Operating Pressure | 350 bar |
| Maximum Flow Rate | 80 L/min | Minimum Operating Temperature | -25 °C |
| Maximum Operating Temperature | 60 °C | Mounting Type | Subplate mounting |
| For Fluid Type | Water glycol | Actuation Type | Manually |
| Operation Type | Direct | Weight | 1.4 kg |
