D1VLB020BN4K91
$1,111.97
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description

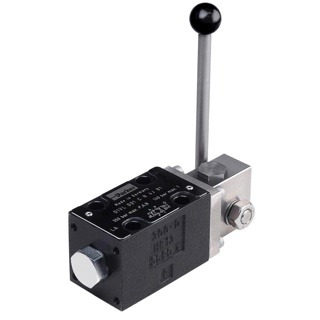

Get ready to take control with the D1VL and D3DL series direct operated directional control valves. These powerful valves come with hand levers, offer high flow, and boast a variety of spool options to suit your needs.
Additional information
Product Specifications
| Part Number | D1VLB020BN4K | Brand | Parker |
| Product Series | Directional control valve | Actuation | Hand lever side A |
| Spool Code | 020 | Port Connection | NG06 / CETOP 03 |
| Division | Industrial Systems Division Europe | Function | 2-way |
| Seal Material | NBR | Body Material | Cast iron |
| Switching Option | Center of rotation above spool axis | Spool Position | 2 positions, spring offset in position b, operated in position a |
| Mounting Position | Unrestricted, preferably horizontal | Maximum Operating Pressure | 350 bar |
| Maximum Flow Rate | 80 L/min | Minimum Operating Temperature | -25 °C |
| Maximum Operating Temperature | 60 °C | Actuation Type | Manually |
| For Fluid Type | Hydraulic oil according to DIN 51524 | Mounting Type | Subplate mounting |
| Operation Type | Direct | Weight | 1.4 kg |
