Product Description

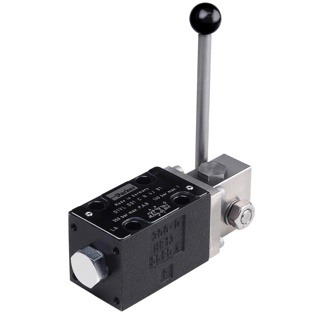

The D1VL and D3DL series of direct operated directional control valves offer high flow and a variety of spool options. Operating with hand levers and available in different sizes (NG06 / CETOP 03 / NFPA D03 for D1VL and NG10 / CETOP 05 / NFPA D05 for D3DL), these valves provide versatility and efficiency.
Additional information
Product Specifications
| Part Number | D1VLB009KN4J | Brand | Parker |
| Product Series | Directional control valve | Actuation | Hand lever side A |
| Spool Code | 009 | Port Connection | NG06 / CETOP 03 |
| Division | Industrial Systems Division Europe | Function | 2-way |
| Seal Material | NBR | Body Material | Cast iron |
| Switching Option | Center of rotation below spool axis | Spool Position | 2 positions, spring offset in position 0, operated in position a |
| Mounting Position | Unrestricted, preferably horizontal | Maximum Operating Pressure | 350 bar |
| Maximum Flow Rate | 80 L/min | Maximum Operating Temperature | 60 °C |
| Minimum Operating Temperature | -25 °C | Actuation Type | Manually |
| Mounting Type | Subplate mounting | For Fluid Type | Hydraulic oil according to DIN 51524 |
| Operation Type | Direct | Weight | 1.4 kg |
