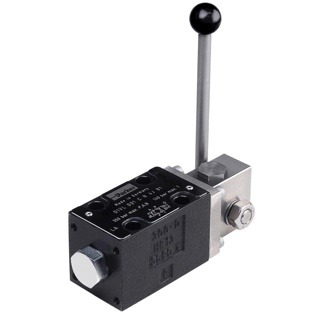

D1vlb004nn4j directional valve ng6 hand lever
$1,383.94
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
Check out the D1VL (NG06 / CETOP 03 / NFPA D03) and D3DL (NG10 / CETOP 05 / NFPA D05) directional control valves with hand lever. These valves offer high flow and come with various spool options.
Additional information
Product Specifications
| Part Number | D1VLB004NN4J | Brand | Parker |
| Product Series | Directional control valve | Actuation | Hand lever side A |
| Spool Code | 004 | Port Connection | NG06 / CETOP 03 |
| Division | Industrial Systems Division Europe | Function | 3-way |
| Seal Material | NBR | Body Material | Cast iron |
| Switching Option | Center of rotation below spool axis | Mounting Position | Unrestricted, preferably horizontal |
| Spool Position | 3 positions, detent, operated in position a, 0 or b, no center in offset position | Maximum Operating Pressure | 350 bar |
| Maximum Flow Rate | 80 L/min | Maximum Operating Temperature | 60 °C |
| Minimum Operating Temperature | -25 °C | Mounting Type | Subplate mounting |
| For Fluid Type | Hydraulic oil according to DIN 51524 | Actuation Type | Manually |
| Operation Type | Direct | Weight | 1.4 kg |
