D1VL020BN4K Dir.valve Ng6 Manual
$1,262.16
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description

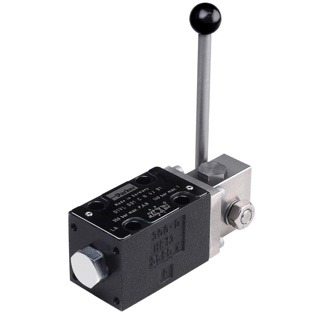

The D1VL020BN4K is a manual direct-operated directional control valve with NG6 / CETOP 03 / NFPA D03 dimensions. It offers high flow and a variety of spool options, along with a hand lever for easy operation.
Additional information
Product Specifications
| Part Number | D1VL020BN4K | Brand | Parker |
| Product Series | Directional control valve | Actuation | Hand lever side B |
| Spool Code | 020 | Port Connection | NG06 / CETOP 03 |
| Division | Industrial Systems Division Europe | Function | 2-way |
| Seal Material | NBR | Body Material | Cast iron |
| Switching Option | Center of rotation above spool axis | Spool Position | 2 positions, spring offset in position b, operated in position a |
| Mounting Position | Unrestricted, preferably horizontal | Maximum Operating Pressure | 350 bar |
| Maximum Flow Rate | 80 L/min | Maximum Operating Temperature | 60 °C |
| Minimum Operating Temperature | -25 °C | Actuation Type | Manually |
| Mounting Type | Subplate mounting | For Fluid Type | Hydraulic oil according to DIN 51524 |
| Operation Type | Direct | Weight | 1.4 kg |
