Product Description

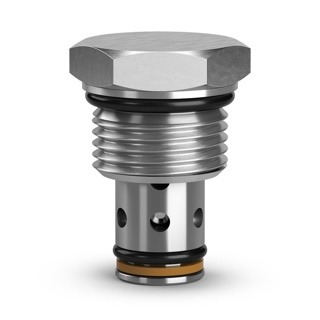

Shop our D02B2-25.0N Parker ball type check valves for efficient flow control. These valves block flow in one direction while allowing smooth flow in the opposite direction, showcasing a maximum flow capacity of 42 GPM and withstanding pressures up to 6000 psi.
Additional information
Product Specifications
| Part Number | D02B2-25.0N | Brand | Parker |
| Flow Direction | 2-1 checked, 1-2 free flow | Division | Hydraulic Cartridge Systems Division | Mobile Systems Division Europe |
| Function | Standard Check | Seal Material | Nitrile |
| Valve Material | All parts steel. All operating parts hardened steel | Cracking Pressure | 25 bar | 362 PSI, 25 BAR | 362 psi |
| Maximum Operating Pressure | 420 bar | 6000 psi | Maximum Flow Rate | 21 Gal/min | 21 GAL/Min, 80 L/MIN | 80 L/min |
| Flow Rate | 12 @ 100 PSI (7 BAR) Nominal Gal/min | 45 @ 100 PSI (7 BAR) Nominal L/min | Leak Rate | < 3 @ 6000 PSI (420 BAR) drops/min |
| Maximum Inlet Pressure Rating | 420 bar | 6000 psi | Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 |
| Cavity Size | C08-2 | Maximum Operating Temperature | +250 °F | +121 °C |
| Minimum Operating Temperature | -34 °C | -30 °F | Operating Temperature | -30 to +250 °F | -34 to +121 °C |
| Installation Torque | 30 lb-ft | 40 Nm | For Fluid Type | Mineral-based or synthetic hydraulic fluids |
| Actuation Type | Pressure Sensing | Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) |
| Weight | 0.05 kg | 0.11 lb |
