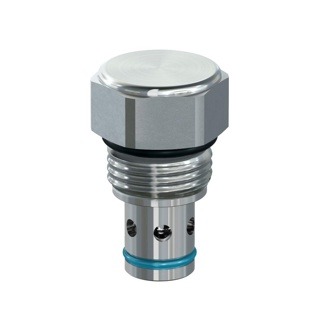

CVH081P Responsible PTC 0.3 bar
$171.74
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
The CVH081P Responsible PTC 0.3 bar is a durable and versatile check valve from Parker. It can handle flows ranging from 3.5 to 303 lpm (0.9 to 80 gpm) and pressure up to 420 bar (6,000 psi). With a simple and robust design, it effectively blocks flow in one direction and allows flow in the opposite direction.
Additional information
Product Specifications
| Part Number | CVH081P | Brand | Parker |
| Flow Direction | 2-1 checked, 1-2 free flow | Division | Hydraulic Cartridge Systems Division |
| Function | Standard Check | Seal Material | D-Ring (Standard) |
| Valve Material | All parts steel. All operating parts hardened steel | Cracking Pressure | 0.3 bar | 5 PSI, 0.3 BAR | 5 psi |
| Maximum Operating Pressure | 350 bar | 5000 psi | Maximum Flow Rate | 10 Gal/min | 10 GAL/MIN, 38 L/MIN | 38 L/min |
| Leak Rate | 2 @ 5000 PSI (350 BAR) drops/min | Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 |
| Maximum Inlet Pressure Rating | 350 bar | 5000 psi | Cavity Size | C08-2 |
| Minimum Operating Temperature | -35 °F | -37 °C | Operating Temperature | -35 to +200 °F | -37 to +93 °C |
| Maximum Operating Temperature | +93 °C | +200 °F | Installation Torque | 32-36 lb-ft | 43-49 Nm |
| For Fluid Type | Mineral-based or synthetic hydraulic fluids | Actuation Type | Pressure Sensing |
| Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) | Weight | 0.1 kg | 0.2 lb |
