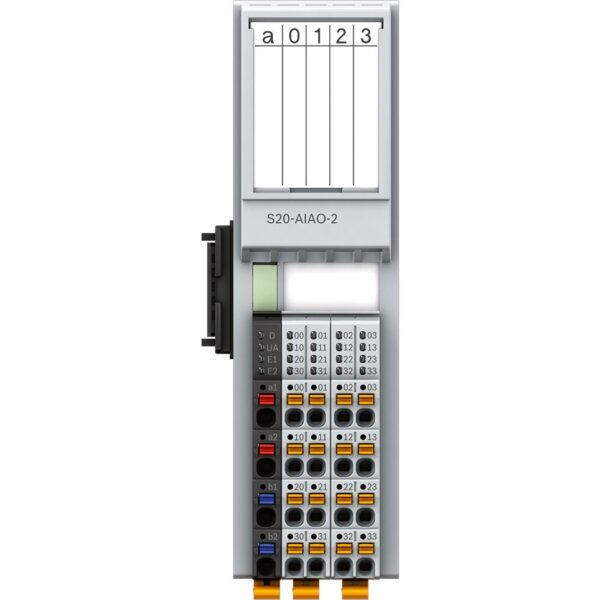

Bosch Rexroth Analog Input Module/Analog Output Module S20-Aiao-2 R911173743
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
The Bosch Rexroth Analog Input Module/Analog Output Module S20-Aiao-2, featuring a logic voltage of 5V DC, supports 2-wire shielded connectivity. It operates within an ambient temperature range of -25 to 60°C, with a storage range of -40 to 85°C. The module handles analog signals (0-20 mA, ±20 mA, 4-20 mA) and offers 16-bit resolution for both D/A and A/D conversions. It utilizes a push-in connection type and conforms to IP20 protection standards, with compact dimensions of 35 mm width, 54 mm height, and 126.1 mm depth, weighing 0.19 kg.
Additional information
Specifications
| Logic voltage UBus [V DC] | 5 |
|---|---|
| Connectivity technology | 2-wire technique, shielded |
| Ambient temperature (storage and transport) [°C] | -40 to 85 |
| Ambient temperature (during operation) [°C] | -25 to 60 |
| Conductor cross-section | Rigid: 0.2-1.5 mm², Flexible: 0.2-1.5 mm², AWG: 24 … 16 |
| Permissible air humidity (storage) [%] | 5-95 |
| Limit frequency of input filter [kHz] | 12 |
| Output signal | 0-20 mA; ±20 mA; 4-20 mA |
| Permissible air humidity (transport) [%] | 5-95 |
| Input signal | 0-20 mA; ±20 mA; 4-20 mA |
| Process data update [µs] | 150 |
| Resolution D/A | 16 Bit |
| Resolution A/D | 16 Bit |
| Connection type | Push-in |
| International protection code | IP20 |
| Width [mm] | 35 |
| Height [mm] | 54 |
| Depth [mm] | 126.1 |
| Weight [kg] | 0.19 |
