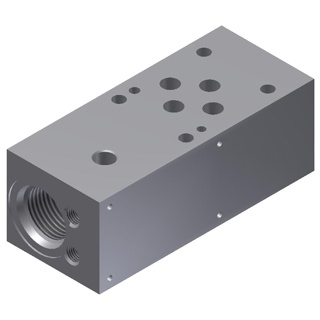

BD03-PP-A PTC-CARTPAK BLOCK P-T
$906.02
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
Rev up your hydraulic system with Parker’s BD03-PP-A PTC-CARTPAK BLOCK P-T. Specifically designed for mounting under a standard ISO 4401-03, NFPA D03, CETOP 3 valve, this sandwich body offers a plethora of valve functionalities.
Additional information
Product Specifications
| Part Number | BD03-PT-A | Brand | Parker |
| Number of Cavities | 1 | Configuration | P to T |
| Division | Hydraulic Cartridge Systems Division | Seal Material | Nitrile |
| Body Material | Aluminum | Maximum Operating Pressure | 210 bar | 3000 psi |
| Cavity Size | C10-2 | Minimum Operating Temperature | -34 °C | -30 °F |
| Maximum Operating Temperature | +250 °F | +121 °C | Operating Temperature | -34 to +121 °F | -30 to +250 °C |
| For Fluid Type | Mineral-based or synthetic hydraulic fluids | Type/Configuration | P to T |
| Weight | 0.34 kg | 0.75 lb |
