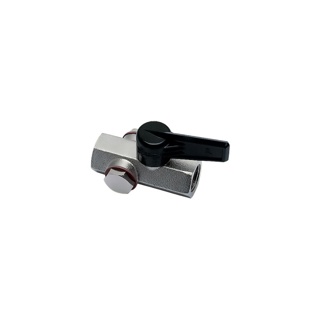

Ball Valve 3/8 BSP with Plugs for Precise Flow Control
$99.65
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
The Ball Valve 3/8″ BSP with Plugs is a highly versatile and durable plumbing component designed for a wide range of applications. This product features a high-quality brass construction that ensures long-lasting performance and reliability. The 3/8″ BSP thread size makes it suitable for various plumbing systems, allowing for easy installation and compatibility with existing fittings. The ball valve design provides excellent flow control, allowing you to regulate the flow of liquids with precision.
Equipped with integrated plugs, this ball valve offers added convenience and flexibility, allowing you to easily close off specific lines or outlets when needed. Whether used in commercial, industrial, or residential settings, this ball valve with plugs is an essential component for ensuring efficient and reliable fluid control. Its compact size and robust construction make it ideal for use in tight spaces or challenging environments. Trust the Ball Valve 3/8″ BSP with Plugs to deliver exceptional performance and functionality in your plumbing systems.
Additional information
Product Specifications
| Part Number | 0494 07 17 | Brand | Parker |
| Product Type | Ball Valves | Product Series | Universal Light Series |
| Diameter Nominal (DN) | 7 | Connection 1 Thread Size (metric) | G3/8 |
| Quantity per Box | 1 | Configuration | 2/2 |
| Materials of Construction | Brass | Division | Low Pressure Connectors Europe Division |
| Function | 2-Way | Handle | TECHNICAL POLYMER |
| Industry | Industrial Manufacturing Equipment | Body Material | NICKEL PLATED BRASS | Nickel Plated Brass |
| Ball Material | Nickel Plated Brass | Seat Material | Graphite-impregnated polyamide |
| Ball Seal Material | NBR | Stem Seal Material | NBR |
| Seal Material | NBR | O-Ring Material | NBR |
| Stem Material | Brass | Specifications Met | RG: 1907/2006 (REACH) | DI: 97/23/EC (module PED A – diameters greater than 25 mm) | DI: 2002/95/EC (RoHS) | DI: 2006/42/EC (Machinery Directive) |
| Region of Origin | France | Maximum Operating Pressure | 12 bar | 174 psi | 1.2 MPa |
| Shape | 2/2 light serie in line ball valve 2 vent plugs female | In-line | Connection Size | G3/8 |
| Orifice Size | 7 mm | Product Style | Vented Female Ball Valve |
| Technology | Fluid & Gas Handling | Process Control | Pneumatics | Maximum Operating Temperature | 176 °F | 80 °C |
| Minimum Operating Temperature | -4 °F | -20 °C | Mounting Type | In-Line |
| Operation Type | Lever-operated | For Fluid Type | Inert Gas | Other fluids: see compatibility chart at the end of this chapter | Air | Water |
| Actuation Type | Manual | Handle Type | Black long lever (Polymer) |
| Connection Type | BSPP | Weight | 0.178 kg | 0.356 lb |
