Product Description

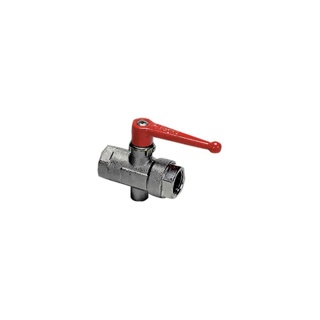

The Ball Valve 3/8″ BSP Tapped Vent is a precision-engineered plumbing component designed for efficient and reliable control of gas or liquid flow. Crafted from high-quality materials, this ball valve features a 3/8″ BSP thread size with a tapped vent for optimal performance. The ball valve provides a secure shutoff with its quarter-turn operation, allowing for quick and easy control of flow. With its durable construction, it ensures longevity and resistance to corrosion, making it suitable for various industrial, commercial, or residential applications. This ball valve is ideal for use in pipelines, plumbing systems, gas lines, water treatment plants, and more, offering a versatile solution for your flow control needs. Trust in the quality and reliability of the Ball Valve 3/8″ BSP Tapped Vent for smooth and efficient operation in your plumbing systems.
Additional information
Product Specifications
| Part Number | 0489 10 17 | Brand | Parker |
| Product Type | Ball Valves | Universal Series, Vented | Product Series | Universal Series |
| Diameter Nominal (DN) | 10 | Connection 1 Thread Size (metric) | G3/8 M5x0,8 |
| Quantity per Box | 2 | Configuration | 3/2 |
| Division | Low Pressure Connectors Europe Division | Function | 2-Way |
| Handle | ZAMAK | Industry | Industrial Manufacturing Equipment |
| Seat Material | Rilsan Graphited | Body Material | Nickel Plated Brass |
| Stem Material | Brass | Seal Material | NBR |
| O-Ring Material | NBR | Ball Seal Material | NBR |
| Stem Seal Material | NBR | Specifications Met | DI: 97/23/EC (module PED A – diameters greater than 25 mm) | DI: 2006/42/EC (Machinery Directive) | RoHS | REACH |
| Region of Origin | France | Maximum Operating Pressure | Vacuum to 40 bar | Vacuum to 4 MPa | Vacuum to 580.16 psi |
| Shape | 3/2 in-line vented ball valve female | In-line | Orifice Size | 10 mm |
| Connection Size | G3/8 | Product Style | Vented Female Ball Valve |
| Connection 1 Thread Style | BSPP | Technology | Fluid & Gas Handling | Process Control | Pneumatics |
| Minimum Operating Temperature | Up to -40 °C/°F without movement of the handle | -4 °F | -20 °C | Maximum Operating Temperature | 80 °C |
| For Fluid Type | Inert Gas | Air | Water | Handle Type | Red long lever (ZAMAK) |
| Operation Type | Lever-operated | Mounting Type | In-Line |
| Actuation Type | Manual | Connection Type | BSPP |
| Weight | 0.243 kg | 0.536 lb |
