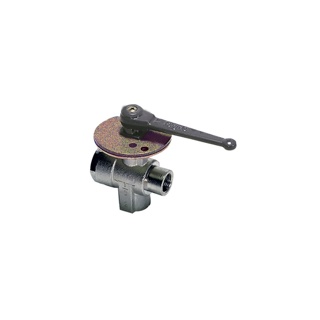

Ball Valve 3/8 BSP 3-Way Lock for Precision Fluid Control
$187.44
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
Upgrade your plumbing system with the Ball Valve 3/8″ BSP 3-Way Lock, a versatile and reliable valve designed for precision control of fluid flow. Crafted from high-quality materials, this valve ensures durability and longevity, making it perfect for both residential and commercial applications. The 3-way design allows for easy switching between different flow directions, providing flexibility and efficiency in your plumbing setup.
With a 3/8″ BSP size, this ball valve is suitable for various plumbing projects, including water distribution, HVAC systems, and industrial applications. The lock feature adds an extra layer of security, preventing accidental changes in flow direction and ensuring stable operation. Easy to install and operate, this ball valve is a valuable addition to any plumbing system, offering smooth performance and seamless control over fluid flow. Whether you are upgrading an existing system or starting a new project, the Ball Valve 3/8″ BSP 3-Way Lock is the ideal choice for reliable and efficient flow control.
Additional information
Product Specifications
| Part Number | 0438 09 17 | Brand | Parker |
| Product Type | Ball Valves | Universal Series, Lockable | Product Series | Universal Series |
| Diameter Nominal (DN) | 9 | Connection 1 Thread Size (metric) | G3/8 |
| Quantity per Box | 2 | Configuration | 3/2 |
| Division | Low Pressure Connectors Europe Division | Function | 3-Way |
| Handle | ZAMAK | Industry | Industrial Manufacturing Equipment |
| Seat Material | Rilsan Graphited | Body Material | Nickel Plated Brass |
| O-Ring Material | NBR | Stem Material | Brass |
| Stem Seal Material | NBR | Ball Seal Material | NBR |
| Seal Material | NBR | Specifications Met | DI: 97/23/EC (module PED A – diameters greater than 25 mm) | DI: 2006/42/EC (Machinery Directive) | RoHS | REACH |
| Region of Origin | France | Maximum Operating Pressure | Vacuum to 20 bar | Vacuum to 290.08 psi | Vacuum to 2 MPa |
| Shape | 3/2 right angled 3 point lockable ball valve female | Right angled | Connection Size | G3/8 |
| Orifice Size | 9 mm | Product Style | 3 point lockable Female Ball Valve |
| Connection 1 Thread Style | BSPP | Technology | Fluid & Gas Handling | Process Control | Pneumatics |
| Minimum Operating Temperature | Up to -40°C/°F without movement of the handle | -4 °F | -20 °C | Maximum Operating Temperature | 80 °C |
| For Fluid Type | Inert Gas | Air | Water | Mounting Type | In-Line |
| Handle Type | Grey long lever (ZAMAK) | Actuation Type | Manual |
| Operation Type | Lever-operated | Connection Type | BSPP |
| Weight | 0.970 kg | 2.138 lb |
