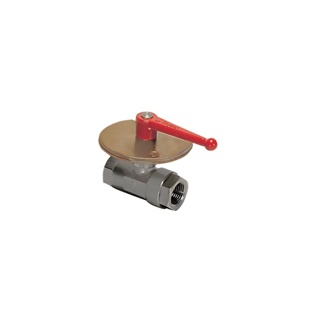

3/4 inch BSP Ball Valve with Lock for Plumbing Systems
$233.89
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
The 3/4″ BSP Ball Valve with a built-in lock is a high-quality valve ideal for a wide range of plumbing applications. This durable and reliable valve is made to the highest standards, ensuring long-term performance and functionality. The 3/4″ size is versatile and commonly used in residential and commercial plumbing systems.
The lock feature adds an extra layer of security, making it perfect for situations where tampering or unauthorized use must be prevented. This valve is easy to install and operate, thanks to its user-friendly design. The ball valve design provides excellent control over the flow of liquids, allowing you to regulate water, gas, or other fluids with precision.
Whether you are a professional plumber or a DIY enthusiast, this ball valve is a must-have addition to your toolkit. Its robust construction, lock feature, and reliable performance make it a dependable choice for various applications. Invest in the 3/4″ BSP Ball Valve with Lock and enjoy peace of mind knowing your plumbing system is secure and efficiently controlled.
Additional information
Product Specifications
| Part Number | 0439 18 27 | Brand | Parker |
| Product Type | Ball Valves | Universal Series, Lockable | Product Series | Universal Series |
| Diameter Nominal (DN) | 18 | Connection 1 Thread Size (metric) | G3/4 |
| Quantity per Box | 2 | Configuration | 3/2 |
| Division | Low Pressure Connectors Europe Division | Function | 3-Way |
| Handle | ZAMAK | Industry | Industrial Manufacturing Equipment |
| Seat Material | Rilsan Graphited | Body Material | Nickel Plated Brass |
| Seal Material | NBR | O-Ring Material | NBR |
| Stem Material | Brass | Stem Seal Material | NBR |
| Ball Seal Material | NBR | Specifications Met | DI: 97/23/EC (module PED A – diameters greater than 25 mm) | DI: 2006/42/EC (Machinery Directive) | RoHS | REACH |
| Region of Origin | France | Maximum Operating Pressure | Vacuum to 40 bar | Vacuum to 4 MPa | Vacuum to 580.16 psi |
| Shape | In-line | 3/2 in-line vented lockable ball valve female | Orifice Size | 18 mm |
| Connection Size | G3/4 | Product Style | Vented lockable Female Ball Valve |
| Connection 1 Thread Style | BSPP | Technology | Fluid & Gas Handling | Process Control | Pneumatics |
| Minimum Operating Temperature | Up to -40 °C/°F without movement of the handle | -4 °F | -20 °C | Maximum Operating Temperature | 80 °C |
| For Fluid Type | Inert Gas | Air | Water | Actuation Type | Manual |
| Operation Type | Lever-operated | Mounting Type | In-Line |
| Handle Type | Red long lever (ZAMAK) | Connection Type | BSPP |
| Weight | 0.810 kg | 1.786 lb |
