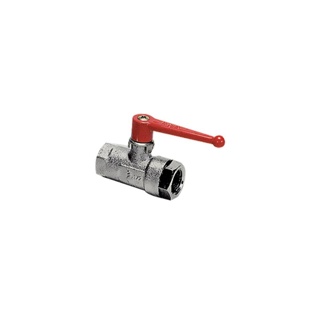

3/4 BSP Vented Ball Valve for Reliable Plumbing Control
$175.63
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
Upgrade your plumbing system with the Ball Valve 3/4″ BSP Vented. This high-quality valve is designed to provide reliable control and shut-off capabilities in your piping network. Crafted with durable materials, this ball valve ensures longevity and efficiency. The 3/4″ size is versatile, making it suitable for various residential and commercial applications.
The BSP connection ensures a secure and leak-free attachment, giving you peace of mind. The vented feature allows for air to escape when the valve is closed, preventing airlocks and ensuring smooth operation. Whether you are working on a new installation or repairing existing plumbing, this ball valve is a must-have component. Easy to install and operate, it simplifies maintenance tasks and enhances the overall performance of your plumbing system. Trust the Ball Valve 3/4″ BSP Vented for precision control and durable performance in any plumbing application.
Additional information
Product Specifications
| Part Number | 0469 18 27 | Brand | Parker |
| Product Type | Ball Valves | Universal Series, Vented | Product Series | Universal Series |
| Diameter Nominal (DN) | 18 | Connection 1 Thread Size (metric) | G3/4 |
| Quantity per Box | 1 | Configuration | 3/2 |
| Division | Low Pressure Connectors Europe Division | Function | 3-Way |
| Handle | ZAMAK | Industry | Industrial Manufacturing Equipment |
| Seat Material | Rilsan Graphited | Body Material | Nickel Plated Brass |
| Seal Material | NBR | O-Ring Material | NBR |
| Ball Seal Material | NBR | Stem Material | Brass |
| Stem Seal Material | NBR | Specifications Met | DI: 97/23/EC (module PED A – diameters greater than 25 mm) | REACH | DI: 2006/42/EC (Machinery Directive) | RoHS |
| Region of Origin | France | Maximum Operating Pressure | Vacuum to 40 bar | Vacuum to 4 MPa | Vacuum to 580.16 psi |
| Shape | 3/2 in-line vented ball valve female | In-line | Connection Size | G3/4 |
| Orifice Size | 18 mm | Product Style | Vented Female Ball Valve |
| Connection 1 Thread Style | BSPP | Technology | Fluid & Gas Handling | Process Control | Pneumatics |
| Minimum Operating Temperature | Up to -40 °C/°F without movement of the handle | -4 °F | -20 °C | Maximum Operating Temperature | 80 °C |
| For Fluid Type | Inert Gas | Air | Water | Handle Type | Red long lever (ZAMAK) |
| Actuation Type | Manual | Mounting Type | In-Line |
| Operation Type | Lever-operated | Connection Type | BSPP |
| Weight | 0.668 kg | 1.473 lb |
