Ball Valve 3/4 BSP RT Angled for Precision Flow Control
$200.93
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description

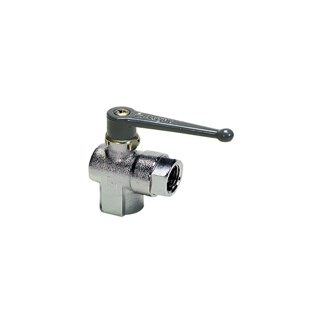

The Ball Valve 3/4″ BSP RT Angled is a precision-engineered plumbing component designed for efficient flow control in various applications. With a quarter-turn rotational mechanism, this ball valve allows for quick and easy ON/OFF operation, providing instant control over water, air, oil, and other non-aggressive media. The 3/4″ size and BSP threading ensure compatibility with standard plumbing systems, making it a versatile choice for both residential and commercial use.
Constructed with durable materials, the ball valve offers long-lasting performance and resistance to corrosion, ensuring reliability in demanding conditions. The angled design of the valve facilitates installation in tight spaces or where piping requires a specific orientation. Whether used in heating systems, irrigation, industrial settings, or home plumbing projects, the Ball Valve 3/4″ BSP RT Angled delivers precise flow regulation and dependable shut-off functionality. Upgrade your plumbing system with this high-quality ball valve for superior performance and durability.
Additional information
Product Specifications
| Part Number | 0472 18 27 | Brand | Parker |
| Product Type | Ball Valves | Universal and Universal Customised Series | Product Series | Universal Series |
| Diameter Nominal (DN) | 18 | Connection 1 Thread Size (metric) | G3/4 |
| Quantity per Box | 2 | Configuration | 2/2 |
| Division | Low Pressure Connectors Europe Division | Function | 2-Way |
| Handle | ZAMAK | Industry | Industrial Manufacturing Equipment |
| Body Material | Nickel Plated Brass | Seat Material | Rilsan Graphited |
| Stem Material | Brass | Ball Seal Material | NBR |
| Stem Seal Material | NBR | Seal Material | NBR |
| O-Ring Material | NBR | Specifications Met | DI: 97/23/EC (module PED A – diameters greater than 25 mm) | DI: 2006/42/EC (Machinery Directive) | REACH | RoHS |
| Region of Origin | France | Maximum Operating Pressure | Vacuum to 20 bar | Vacuum to 290.08 psi | Vacuum to 2 MPa |
| Shape | 2/2 right angled ball valve female | Right angled | Connection Size | G3/4 |
| Orifice Size | 18 mm | Product Style | Female Ball Valve |
| Connection 1 Thread Style | BSPP | Technology | Fluid & Gas Handling | Process Control | Pneumatics |
| Minimum Operating Temperature | Up to -40 °C/°F without movement of the handle | -4 °F | -20 °C | Maximum Operating Temperature | 80 °C |
| For Fluid Type | Inert Gas | Air | Water | Actuation Type | Manual |
| Mounting Type | In-Line | Handle Type | Grey long lever (ZAMAK) |
| Operation Type | Lever-operated | Connection Type | BSPP |
| Weight | 0.704 kg | 1.552 lb |
