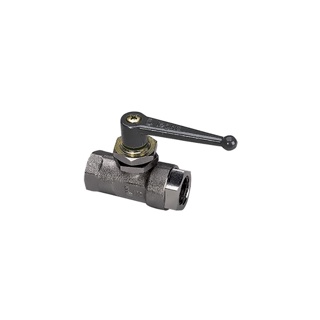

Ball Valve 2way 1/8 BSP Panmtg for Precise Flow Control
$76.13
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
This Ball Valve 2way 1/8″ BSP Panmtg is a high-quality precision-engineered valve designed for optimal performance and durability. Made with premium materials, this valve ensures reliable operation and long-lasting service life. The 2-way functionality allows for straightforward control of flow, making it suitable for a wide range of applications. The 1/8″ BSP connection size ensures compatibility with various piping systems and equipment.
With a pan mount design, this ball valve offers easy installation and maintenance, saving time and effort. Ideal for industrial, commercial, and residential use, this valve is versatile and can be used in diverse settings such as water systems, air compressors, hydraulic systems, and more. Whether you are a professional contractor, DIY enthusiast, or industrial operator, this Ball Valve 2way 1/8″ BSP Panmtg provides a reliable and efficient solution for your flow control needs.
Additional information
Product Specifications
| Part Number | 0446 04 10 | Brand | Parker |
| Product Type | Ball Valves | Universal and Universal Customised Series | Product Series | Universal Series |
| Diameter Nominal (DN) | 4 | Connection 1 Thread Size (metric) | G1/8 |
| Quantity per Box | 2 | Configuration | 3/2 |
| Division | Low Pressure Connectors Europe Division | Function | 2-Way |
| Handle | ZAMAK | Industry | Industrial Manufacturing Equipment |
| Body Material | Nickel Plated Brass | Seat Material | Rilsan Graphited |
| Ball Seal Material | NBR | Stem Material | Brass |
| Stem Seal Material | NBR | Seal Material | NBR |
| O-Ring Material | NBR | Specifications Met | DI: 97/23/EC (module PED A – diameters greater than 25 mm) | DI: 2006/42/EC (Machinery Directive) | RoHS | REACH |
| Region of Origin | France | Maximum Operating Pressure | Vacuum to 20 bar | Vacuum to 290.08 psi | Vacuum to 2 MPa |
| Shape | 2/2 in-line panel montable ball valve female | In-line | Orifice Size | 4 mm |
| Connection Size | G1/8 | Product Style | Vented lockable Female Ball Valve |
| Connection 1 Thread Style | BSPP | Technology | Fluid & Gas Handling | Process Control | Pneumatics |
| Minimum Operating Temperature | Up to -40 °C/°F without movement of the handle | -4 °F | -20 °C | Maximum Operating Temperature | 80 °C |
| For Fluid Type | Inert Gas | Air | Water | Actuation Type | Manual |
| Operation Type | Lever-operated | Mounting Type | Panel-Mountable |
| Handle Type | Grey long lever (ZAMAK) | Connection Type | BSPP |
| Weight | 0.112 kg | 0.247 lb |
