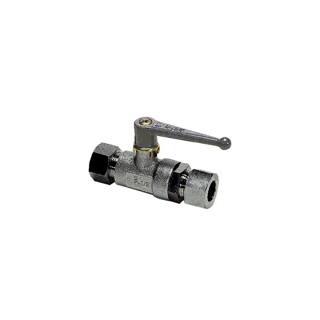

10mm Tube Ball Valve DTR Rings for Precise Fluid Control
$87.48
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
The Ball Valve 10mm Tube DTR Rings are precision-engineered components designed for fluid control applications. These rings are crafted from durable materials to ensure longevity and reliability in use. With a 10mm tube size, they are ideal for regulating the flow of liquids or gases in various industrial systems. The ball valve mechanism allows for quick and efficient on/off control, providing convenience and ease of operation. The DTR Rings ensure a secure and leak-free connection, enhancing the overall performance and efficiency of the system. Whether for plumbing, HVAC, manufacturing, or other applications, these rings offer a dependable solution for fluid control needs. Trust the Ball Valve 10mm Tube DTR Rings for their quality construction, precise functionality, and versatility in diverse settings.
Additional information
Product Specifications
| Part Number | 0414 07 10 | Brand | Parker |
| Product Type | Ball Valves | Universal and Universal Customised Series | Product Series | Universal Series |
| Diameter Nominal (DN) | 7 | Connection 2 Tube O.D. (mm) | 10 |
| Quantity per Box | 5 | Configuration | 2/2 |
| Division | Low Pressure Connectors Europe Division | Function | 2-Way |
| Handle | ZAMAK | Industry | Industrial Manufacturing Equipment |
| Nut Material | NICKEL PLATED BRASS | Seat Material | Rilsan Graphited |
| Body Material | Nickel Plated Brass | Sleeve Material | BRASS |
| Stem Seal Material | NBR | Stem Material | Brass |
| O-Ring Material | NBR | Seal Material | NBR |
| Ball Seal Material | NBR | Specifications Met | DI: 97/23/EC (module PED A – diameters greater than 25 mm) | DI: 2006/42/EC (Machinery Directive) | REACH | RoHS |
| Region of Origin | France | Maximum Operating Pressure | Vacuum to 40 bar | Vacuum to 4 MPa | Vacuum to 580.16 psi |
| Shape | 2/2 in-line ball valve with brass compression fitting | In-line | Orifice Size | 7 mm |
| Product Style | Ball Valve with Steel Compression Fitting | Technology | Fluid & Gas Handling | Process Control | Pneumatics |
| Minimum Operating Temperature | Up to -40 °C/°F without movement of the handle | -4 °F | -20 °C | Maximum Operating Temperature | 80 °C |
| Operation Type | Lever-operated | For Fluid Type | Inert Gas | Air | Water |
| Handle Type | Grey long lever (ZAMAK) | Connection Type | Compression fittings |
| Actuation Type | Manual | Mounting Type | In-Line |
| Weight | 0.210 kg | 0.463 lb |
