Ball Valve 1 BSP RT Ang for Robust Industrial Applications
$322.53
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description

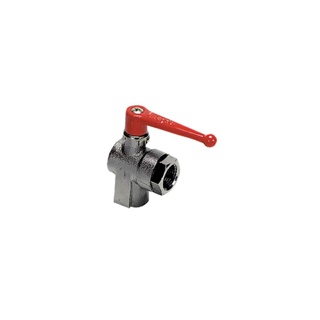

The Ball Valve 1″ BSP RT Ang is a robust and versatile valve designed for various industrial applications. Crafted with high-quality materials, this ball valve ensures durability and long-lasting performance. The 1″ size makes it suitable for moderate to high flow rates, providing efficient control of fluid or gas flow. With a Right Angle design, this valve allows for easy installation in tight spaces where a standard valve may not fit. The ball valve design offers quick on/off operation, making it ideal for applications requiring frequent adjustments or shut-off.
Engineered for reliability, this ball valve features a precision-engineered ball that provides a tight seal when closed, minimizing leakage and ensuring smooth operation. The BSP threading ensures a secure connection, preventing leaks and enhancing overall system efficiency. Whether used in plumbing, heating, cooling systems, or industrial processes, the Ball Valve 1″ BSP RT Ang is a dependable choice for controlling flow. Invest in this high-quality valve for dependable performance and efficient flow control in your operations.
Additional information
Product Specifications
| Part Number | 0462 23 34 | Brand | Parker |
| Product Type | Ball Valves | Universal Series, Vented | Product Series | Universal Series |
| Diameter Nominal (DN) | 23 | Connection 1 Thread Size (metric) | G1 |
| Quantity per Box | 1 | Configuration | 3/2 |
| Division | Low Pressure Connectors Europe Division | Function | 3-Way |
| Handle | ZAMAK | Industry | Industrial Manufacturing Equipment |
| Ball Material | NICKEL PLATED BRASS | Nickel Plated Brass | Body Material | Nickel Plated Brass |
| Seat Material | Rilsan Graphited | Stem Seal Material | NBR |
| Ball Seal Material | NBR | Seal Material | NBR |
| O-Ring Material | NBR | Stem Material | Brass |
| Specifications Met | DI: 97/23/EC (module PED A – diameters greater than 25 mm) | DI: 2006/42/EC (Machinery Directive) | RoHS | REACH | Region of Origin | France |
| Maximum Operating Pressure | Vacuum to 20 bar | Vacuum to 290.08 psi | Vacuum to 2 MPa | Shape | 3/2 right angled vented ball valve female | Right angled |
| Connection Size | G1 | Orifice Size | 23 mm |
| Product Style | Vented Female Ball Valve | Connection 1 Thread Style | BSPP |
| Technology | Fluid & Gas Handling | Process Control | Pneumatics | Minimum Operating Temperature | Up to -40 °C/°F without movement of the handle | -4 °F | -20 °C |
| Maximum Operating Temperature | 80 °C | Handle Type | Red long lever (ZAMAK) |
| Actuation Type | Manual | For Fluid Type | Inert Gas | Air | Water |
| Mounting Type | In-Line | Operation Type | Lever-operated |
| Connection Type | BSPP | Weight | 1.066 kg | 2.350 lb |
