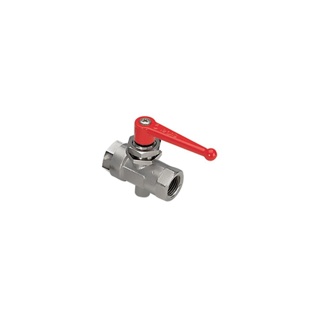

Ball Valve 1/4 BSP for Plumbing, Irrigation & Industrial Systems
$130.54
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
The Ball Valve 1/4″ BSP is a versatile and reliable valve designed for a wide range of applications. With a 1/4-inch BSP thread size, this ball valve is ideal for controlling flow in plumbing, irrigation, and industrial systems. The valve is constructed from high-quality materials, ensuring durability and long-lasting performance. Its compact size makes it easy to install in tight spaces, while the easy-to-turn handle provides smooth operation.
This ball valve features a quarter-turn operation for quick and effortless on/off control of liquids or gases. The BSP threading ensures a secure and leak-free connection, making it suitable for high-pressure environments. Whether you’re a professional plumber, an industrial technician, or a DIY enthusiast, the Ball Valve 1/4″ BSP is a reliable choice for your fluid control needs. Upgrade your system with this sturdy and efficient ball valve for enhanced performance and peace of mind.
Additional information
Product Specifications
| Part Number | 0449 07 13 | Brand | Parker |
| Product Type | Ball Valves | Universal Series, Vented | Product Series | Universal Series |
| Diameter Nominal (DN) | 7 | Connection 1 Thread Size (metric) | G1/4 |
| Quantity per Box | 2 | Configuration | 3/2 |
| Division | Low Pressure Connectors Europe Division | Function | 3-Way |
| Handle | ZAMAK | Industry | Industrial Manufacturing Equipment |
| Body Material | Nickel Plated Brass | Seat Material | Rilsan Graphited |
| Stem Material | Brass | Ball Seal Material | NBR |
| O-Ring Material | NBR | Seal Material | NBR |
| Stem Seal Material | NBR | Specifications Met | DI: 97/23/EC (module PED A – diameters greater than 25 mm) | REACH | DI: 2006/42/EC (Machinery Directive) | RoHS |
| Region of Origin | France | Maximum Operating Pressure | Vacuum to 20 bar | Vacuum to 290.08 psi | Vacuum to 2 MPa |
| Shape | 3/2 in-line vented panel mountable ball valve female | In-line | Orifice Size | 7 mm |
| Connection Size | G1/4 | Product Style | Vented panel mountable Female Ball Valve |
| Connection 1 Thread Style | BSPP | Technology | Fluid & Gas Handling | Process Control | Pneumatics |
| Minimum Operating Temperature | Up to -40 °C/°F without movement of the handle | -4 °F | -20 °C | Maximum Operating Temperature | 80 °C |
| For Fluid Type | Inert Gas | Air | Water | Actuation Type | Manual |
| Operation Type | Lever-operated | Handle Type | Red long lever (ZAMAK) |
| Mounting Type | Panel-Mountable | Connection Type | BSPP |
| Weight | 0.313 kg | 0.690 lb |
