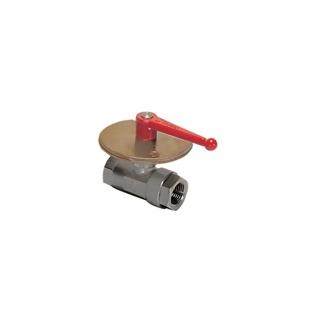

Ball Valve 1/4 BSP with Locke | Durable and Corrosion-Resistant Valve
$140.79
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
The Ball Valve 1/4″ BSP with Lock’e is a sturdy and reliable valve designed for various applications. This high-quality valve is crafted from durable materials to ensure long-lasting performance and resistance to corrosion. The 1/4″ BSP size makes it suitable for a range of plumbing and industrial settings. The Lock’e feature adds an extra level of security by allowing you to lock the valve in position, preventing accidental operation or tampering.
Ideal for controlling the flow of liquids or gases, this ball valve offers smooth and precise operation. Its compact size makes it easy to install in tight spaces while providing efficient flow control. Whether used in plumbing systems, manufacturing plants, or automotive applications, this ball valve with Lock’e provides a reliable solution for your fluid control needs. Trust in its robust construction and dependable performance to meet your requirements with ease and efficiency.
Additional information
Product Specifications
| Part Number | 0439 07 13 | Brand | Parker |
| Product Type | Ball Valves | Universal Series, Lockable | Product Series | Universal Series |
| Diameter Nominal (DN) | 7 | Connection 1 Thread Size (metric) | G1/4 |
| Quantity per Box | 2 | Configuration | 3/2 |
| Division | Low Pressure Connectors Europe Division | Function | 3-Way |
| Handle | ZAMAK | Industry | Industrial Manufacturing Equipment |
| Seat Material | Rilsan Graphited | Body Material | Nickel Plated Brass |
| Seal Material | NBR | Stem Material | Brass |
| Ball Seal Material | NBR | Stem Seal Material | NBR |
| O-Ring Material | NBR | Specifications Met | DI: 97/23/EC (module PED A – diameters greater than 25 mm) | REACH | DI: 2006/42/EC (Machinery Directive) | RoHS |
| Region of Origin | France | Maximum Operating Pressure | Vacuum to 40 bar | Vacuum to 4 MPa | Vacuum to 580.16 psi |
| Shape | In-line | 3/2 in-line vented lockable ball valve female | Connection Size | G1/4 |
| Orifice Size | 7 mm | Product Style | Vented lockable Female Ball Valve |
| Connection 1 Thread Style | BSPP | Technology | Fluid & Gas Handling | Process Control | Pneumatics |
| Minimum Operating Temperature | Up to -40 °C/°F without movement of the handle | -4 °F | -20 °C | Maximum Operating Temperature | 80 °C |
| For Fluid Type | Inert Gas | Air | Water | Handle Type | Red long lever (ZAMAK) |
| Mounting Type | In-Line | Actuation Type | Manual |
| Operation Type | Lever-operated | Connection Type | BSPP |
| Weight | 0.480 kg | 1.058 lb |
