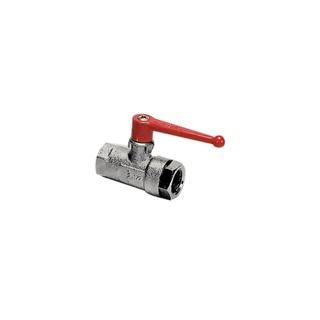

Ball Valve 1/4 BSP Vented for Precise Fluid Control in Plumbing Systems
$75.45
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
The Ball Valve 1/4″ BSP Vented is a high-quality plumbing component designed for precise control and regulation of fluid flow in various applications. Made from durable materials, this ball valve ensures reliability and longevity. The 1/4″ BSP threading allows for easy installation in a wide range of systems. The vented design enables air or gas to escape, providing smooth and efficient operation. This ball valve is ideal for use in plumbing, irrigation, industrial, and commercial settings where fluid control is essential. With its compact size and robust construction, it guarantees a leak-free and secure connection. Whether you are a professional plumber or a DIY enthusiast, the Ball Valve 1/4″ BSP Vented offers a versatile solution for your fluid control needs. Trust in this top-tier ball valve to deliver precision and performance every time.
Additional information
Product Specifications
| Part Number | 0469 07 13 | Brand | Parker |
| Product Type | Ball Valves | Universal Series, Vented | Product Series | Universal Series |
| Diameter Nominal (DN) | 7 | Connection 1 Thread Size (metric) | G1/4 |
| Quantity per Box | 5 | Configuration | 3/2 |
| Division | Low Pressure Connectors Europe Division | Function | 3-Way |
| Handle | ZAMAK | Industry | Industrial Manufacturing Equipment |
| Body Material | Nickel Plated Brass | Seat Material | Rilsan Graphited |
| Stem Material | Brass | Seal Material | NBR |
| Stem Seal Material | NBR | O-Ring Material | NBR |
| Ball Seal Material | NBR | Specifications Met | DI: 97/23/EC (module PED A – diameters greater than 25 mm) | DI: 2006/42/EC (Machinery Directive) | RoHS | REACH |
| Region of Origin | France | Maximum Operating Pressure | Vacuum to 40 bar | Vacuum to 4 MPa | Vacuum to 580.16 psi |
| Shape | 3/2 in-line vented ball valve female | In-line | Connection Size | G1/4 |
| Orifice Size | 7 mm | Product Style | Vented Female Ball Valve |
| Connection 1 Thread Style | BSPP | Technology | Fluid & Gas Handling | Process Control | Pneumatics |
| Minimum Operating Temperature | Up to -40 °C/°F without movement of the handle | -4 °F | -20 °C | Maximum Operating Temperature | 80 °C |
| Actuation Type | Manual | For Fluid Type | Inert Gas | Air | Water |
| Mounting Type | In-Line | Handle Type | Red long lever (ZAMAK) |
| Operation Type | Lever-operated | Connection Type | BSPP |
| Weight | 0.268 kg | 0.591 lb |
