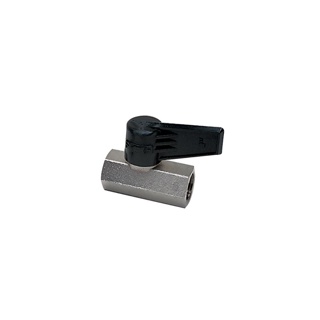

Ball Valve 1/4 BSP Light for Precision Industrial Applications
$122.71
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
The Ball Valve 1/4″ BSP Light is a precision-engineered valve designed for high performance and durability in various industrial applications. Made from top-quality materials, this valve boasts a 1/4″ BSP thread size, ensuring a perfect fit for your piping systems. Its ball mechanism allows for quick and easy on/off control of flow, providing great efficiency and convenience.
This valve is known for its leak-proof design, ensuring a secure and tight seal to prevent any wastage or loss of fluids. Its compact size and lightweight construction make it easy to install and maintain, saving you time and effort. Ideal for controlling water, oil, gas, and other fluids, this ball valve is a versatile component in plumbing, HVAC, manufacturing, and other industries.
With its reliable performance and long-lasting quality, the Ball Valve 1/4″ BSP Light is a smart choice for professionals seeking a dependable solution for fluid control needs. Trust in this valve to deliver outstanding results and maintain smooth operations in your systems.
Additional information
Product Specifications
| Part Number | 0492 04 13 | Brand | Parker |
| Product Type | Ball Valves | Product Series | Universal Light Series |
| Diameter Nominal (DN) | 4 | Connection 1 Thread Size (metric) | G1/4 |
| Quantity per Box | 10 | Configuration | 2/2 |
| Materials of Construction | Brass | Division | Low Pressure Connectors Europe Division |
| Function | 2-Way | Handle | TECHNICAL POLYMER |
| Industry | Industrial Manufacturing Equipment | Body Material | NICKEL PLATED BRASS | Nickel Plated Brass |
| Seat Material | Graphite-impregnated polyamide | Ball Material | Nickel Plated Brass |
| Ball Seal Material | NBR | Stem Seal Material | NBR |
| Stem Material | Brass | Seal Material | NBR |
| O-Ring Material | NBR | Specifications Met | RG: 1907/2006 (REACH) | DI: 97/23/EC (module PED A – diameters greater than 25 mm) | DI: 2002/95/EC (RoHS) | DI: 2006/42/EC (Machinery Directive) |
| Region of Origin | France | Maximum Operating Pressure | 12 bar | 174 psi | 1.2 MPa |
| Shape | 2/2 light serie in line ball valve female | In-line | Orifice Size | 4 mm |
| Connection Size | G1/4 | Product Style | Female Ball Valve |
| Technology | Fluid & Gas Handling | Process Control | Pneumatics | Maximum Operating Temperature | 176 °F | 80 °C |
| Minimum Operating Temperature | -4 °F | -20 °C | For Fluid Type | Inert Gas | Other fluids: see compatibility chart at the end of this chapter | Air | Water |
| Mounting Type | In-Line | Handle Type | Black long lever (Polymer) |
| Operation Type | Lever-operated | Actuation Type | Manual |
| Connection Type | BSPP | Weight | 0.073 kg | 0.146 lb |
