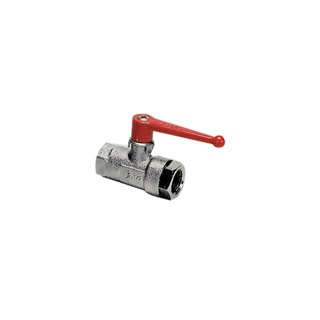

Ball Valve 1/2 BSP Vented for Precision Flow Control
$91.67
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
Upgrade your plumbing system with the Ball Valve 1/2″ BSP Vented. This high-quality ball valve is designed to regulate the flow of liquids through pipes with precision and reliability. Its 1/2″ size is ideal for small to medium plumbing systems, providing versatility and compatibility. The BSP threading ensures a secure and leak-proof connection, giving you peace of mind during operation.
Crafted from durable materials, this ball valve is built to withstand high pressure and constant use, offering longevity and performance. The vented design allows for easy maintenance and pressure release, promoting system efficiency. Whether you’re working on commercial, industrial, or residential plumbing, this ball valve is a valuable addition. Enjoy smooth operation and precise control over your fluid systems with the Ball Valve 1/2″ BSP Vented.
Additional information
Product Specifications
| Part Number | 0469 13 21 | Brand | Parker |
| Product Type | Ball Valves | Universal Series, Vented | Product Series | Universal Series |
| Diameter Nominal (DN) | 13 | Connection 1 Thread Size (metric) | G1/2 |
| Quantity per Box | 5 | Configuration | 3/2 |
| Division | Low Pressure Connectors Europe Division | Function | 3-Way |
| Handle | ZAMAK | Industry | Industrial Manufacturing Equipment |
| Body Material | Nickel Plated Brass | Seat Material | Rilsan Graphited |
| Stem Seal Material | NBR | O-Ring Material | NBR |
| Ball Seal Material | NBR | Stem Material | Brass |
| Seal Material | NBR | Specifications Met | DI: 97/23/EC (module PED A – diameters greater than 25 mm) | DI: 2006/42/EC (Machinery Directive) | RoHS | REACH |
| Region of Origin | France | Maximum Operating Pressure | Vacuum to 40 bar | Vacuum to 4 MPa | Vacuum to 580.16 psi |
| Shape | 3/2 in-line vented ball valve female | In-line | Connection Size | G1/2 |
| Orifice Size | 13 mm | Product Style | Vented Female Ball Valve |
| Connection 1 Thread Style | BSPP | Technology | Fluid & Gas Handling | Process Control | Pneumatics |
| Minimum Operating Temperature | Up to -40 °C/°F without movement of the handle | -4 °F | -20 °C | Maximum Operating Temperature | 80 °C |
| Mounting Type | In-Line | Handle Type | Red long lever (ZAMAK) |
| Operation Type | Lever-operated | Actuation Type | Manual |
| For Fluid Type | Inert Gas | Air | Water | Connection Type | BSPP |
| Weight | 0.293 kg | 0.646 lb |
