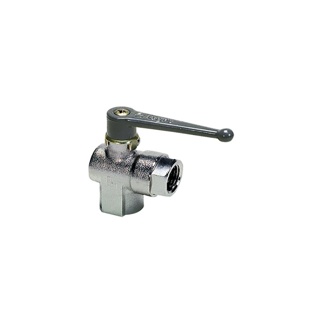

Ball Valve 1/2 BSP RT Angled for Precise Water Flow Control
$102.37
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
The Ball Valve 1/2″ BSP RT Angled is a high-quality plumbing component designed for precise control and shut-off of water flow in residential or commercial systems. With a 1/2 inch BSP connection size, this valve is perfect for adapting and regulating water supply in various applications. Its right-angled design allows for easy access and manipulation even in tight spaces, providing convenience during installation and maintenance procedures. Crafted from durable materials, this ball valve ensures longevity and reliable performance in demanding environments. The smooth operation of the ball mechanism guarantees smooth flow control, minimizing pressure drop and leakage. Whether you are a professional plumber or a DIY enthusiast, the Ball Valve 1/2″ BSP RT Angled is an essential tool for ensuring efficient and effective water management systems.
Additional information
Product Specifications
| Part Number | 0472 12 21 | Brand | Parker |
| Product Type | Ball Valves | Universal and Universal Customised Series | Product Series | Universal Series |
| Diameter Nominal (DN) | 12 | Connection 1 Thread Size (metric) | G1/2 |
| Quantity per Box | 5 | Configuration | 2/2 |
| Division | Low Pressure Connectors Europe Division | Function | 2-Way |
| Handle | ZAMAK | Industry | Industrial Manufacturing Equipment |
| Seat Material | Rilsan Graphited | Body Material | Nickel Plated Brass |
| Stem Seal Material | NBR | Ball Seal Material | NBR |
| Seal Material | NBR | Stem Material | Brass |
| O-Ring Material | NBR | Specifications Met | DI: 97/23/EC (module PED A – diameters greater than 25 mm) | DI: 2006/42/EC (Machinery Directive) | RoHS | REACH |
| Region of Origin | France | Maximum Operating Pressure | Vacuum to 20 bar | Vacuum to 290.08 psi | Vacuum to 2 MPa |
| Shape | 2/2 right angled ball valve female | Right angled | Orifice Size | 12 mm |
| Connection Size | G1/2 | Product Style | Female Ball Valve |
| Connection 1 Thread Style | BSPP | Technology | Fluid & Gas Handling | Process Control | Pneumatics |
| Minimum Operating Temperature | Up to -40 °C/°F without movement of the handle | -4 °F | -20 °C | Maximum Operating Temperature | 80 °C |
| For Fluid Type | Inert Gas | Air | Water | Mounting Type | In-Line |
| Actuation Type | Manual | Handle Type | Grey long lever (ZAMAK) |
| Operation Type | Lever-operated | Connection Type | BSPP |
| Weight | 0.312 kg | 0.689 lb |
