Product Description

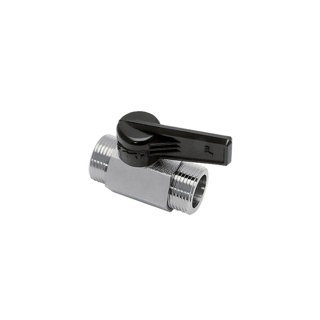

Upgrade your plumbing system with the Ball Valve 1/2″ BSP Male Light, a high-quality and durable valve designed for various applications. This valve features a 1/2″ BSP Male thread, providing a secure and leak-free connection. Crafted from premium materials, this ball valve ensures reliability and longevity, making it ideal for both residential and commercial use.
The compact and lightweight design of this valve allows for easy installation in tight spaces. Its smooth operation and precise control mechanism make it perfect for regulating the flow of liquids or gases with precision. Whether you need to shut off, modulate, or divert flow, this ball valve is up to the task.
Ideal for plumbing projects, irrigation systems, water treatment facilities, and more, the Ball Valve 1/2″ BSP Male Light offers versatility and efficiency. Invest in this dependable ball valve to enhance the performance and efficiency of your piping system. Upgrade to the Ball Valve 1/2″ BSP Male Light for superior quality and peace of mind.
Additional information
Product Specifications
| Part Number | 0490 10 21 | Brand | Parker |
| Product Type | Ball Valves | Product Series | Universal Light Series |
| Diameter Nominal (DN) | 10 | Connection 1 Thread Size (metric) | G1/2 |
| Quantity per Box | 5 | Configuration | 2/2 |
| Materials of Construction | Brass | Division | Low Pressure Connectors Europe Division |
| Function | 2-Way | Handle | TECHNICAL POLYMER |
| Industry | Industrial Manufacturing Equipment | Body Material | NICKEL PLATED BRASS | Nickel Plated Brass |
| Ball Material | Nickel Plated Brass | Seat Material | Graphite-impregnated polyamide |
| Stem Seal Material | NBR | Ball Seal Material | NBR |
| Seal Material | NBR | Stem Material | Brass |
| O-Ring Material | NBR | Specifications Met | RG: 1907/2006 (REACH) | DI: 97/23/EC (module PED A – diameters greater than 25 mm) | DI: 2002/95/EC (RoHS) | DI: 2006/42/EC (Machinery Directive) |
| Region of Origin | France | Maximum Operating Pressure | 12 bar | 174 psi | 1.2 MPa |
| Shape | 2/2 light serie in line ball valve male | In-line | Connection Size | G1/2 |
| Orifice Size | 10 mm | Product Style | Female Ball Valve |
| Technology | Fluid & Gas Handling | Process Control | Pneumatics | Maximum Operating Temperature | 176 °F | 80 °C |
| Minimum Operating Temperature | -4 °F | -20 °C | For Fluid Type | Inert Gas | Other fluids: see compatibility chart at the end of this chapter | Air | Water |
| Handle Type | Black long lever (Polymer) | Operation Type | Lever-operated |
| Mounting Type | In-Line | Actuation Type | Manual |
| Connection Type | BSPP | Weight | 0.16 kg | 0.32 lb |
