B04K4GZN Sequence Valve
$434.47
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description

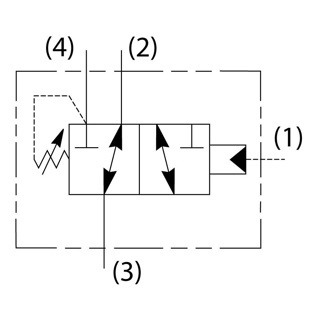

Europe Only-Direct Acting Sequence Valve, B04K4GZN, Provides Precise Actuator Control: Parker’s direct-acting sequence valves ensure precise actuator control by allowing them to work in sequence based on pressure. These valves come in normally open and closed options, with pressures and flows reaching up to 6000 PSI and 15 GPM. They can be piloted and vented internally or externally, offering versatility in various applications.
Additional information
Product Specifications
| Part Number | B04K4GZN | Brand | Parker |
| Configuration | Selector | Division | Mobile Systems Division Europe |
| Function | Direct Acting Sequence | Sealed Pilot Included | No |
| Pilot Location | External | Seal Material | Nitrile |
| Valve Material | All parts steel. All operating parts hardened steel | Adjustment Mechanism | Screw |
| Drain Option | Internal | Maximum Operating Pressure | 420 bar | 6000 psi |
| Standard Setting Pressure | 80 bar | 1160 psi | Maximum Tank Pressure | 420 bar | 6000 psi |
| Pressure Control Range | 2-166 bar | 30-2400 PSI, 2-166 BAR | 30-2400 psi | Flow Rate | 11 Gal/min | 11 GAL/MIN, 42 L/MIN | 42 L/min |
| Maximum Flow Rate | 11 Gal/min | 42 L/min | Leak Rate | 40 @ 1450 PSI (100 BAR) cm3/min |
| Maximum Inlet Pressure Rating | 420 bar | 6000 PSI, 420 BAR | 6000 psi | Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 |
| Pressure Control Sensitivity | 17 per turn bar | 248 per turn psi | Maximum Pressure Setting | 166 bar | 2400 psi |
| Cavity Size | C10-4 | Operating Temperature | -30 to +250 °F | -34 to +121 °C |
| Maximum Operating Temperature | +250 °F | +121 °C | Minimum Operating Temperature | -34 °C | -30 °F |
| Installation Torque | 37 lb-ft | 50 Nm | For Fluid Type | Mineral-based or synthetic hydraulic fluids |
| Mounting Type | Screw in cartridge valve | Actuation Type | Pressure Sensing |
| Operation Type | Automatic | Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) |
| Weight | 0.33 kg | 0.73 lb |
