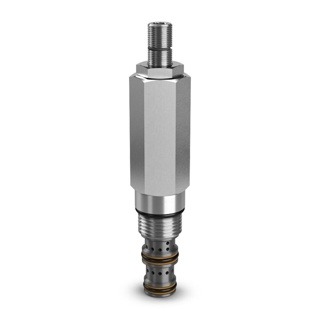

B02E3FZN PTC valve sequence. 2-148 bar
$260.99
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
Europe-Only B02E3FZN PTC Valve Sequence with a pressure range of 2-148 bar. These direct-acting sequence valves enable actuators to operate in a sequential manner based on pressure levels. They can be piloted and vented internally or externally. Parker provides both normally open and closed options, supporting pressures and flows of up to 6000 PSI and 15 GPM.
Additional information
Product Specifications
| Part Number | B02E3FZN | Brand | Parker |
| Configuration | Selector | Division | Mobile Systems Division Europe |
| Function | Direct Acting Sequence | Sealed Pilot Included | No |
| Pilot Location | Internal | Seal Material | Nitrile |
| Valve Material | All parts steel. All operating parts hardened steel | Adjustment Mechanism | Screw |
| Drain Option | Internal | Maximum Operating Pressure | 420 bar | 6000 psi |
| Standard Setting Pressure | 75 bar | 1100 psi | Maximum Tank Pressure | 420 bar | 6000 psi |
| Pressure Control Range | 2-148 bar | 30-2150 PSI, 2-148 BAR | 30-2150 psi | Flow Rate | 8 Gal/min | 8 GAL/MIN, 30 L/MIN | 30 L/min |
| Leak Rate | 25 @ 580 PSI (35 BAR) cm3/min | Maximum Flow Rate | 8 Gal/min | 30 L/min |
| Maximum Inlet Pressure Rating | 420 bar | 6000 PSI, 420 BAR | 6000 psi | Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 |
| Pressure Control Sensitivity | 22 per turn bar | 318 per turn psi | Maximum Pressure Setting | 148 bar | 2150 psi |
| Cavity Size | C08-3 | Maximum Operating Temperature | +250 °F | +121 °C |
| Minimum Operating Temperature | -34 °C | -30 °F | Operating Temperature | -30 to +250 °F | -34 to +121 °C |
| Installation Torque | 30 lb-ft | 40 Nm | Mounting Type | Screw in cartridge valve |
| For Fluid Type | Mineral-based or synthetic hydraulic fluids | Actuation Type | Pressure Sensing |
| Operation Type | Automatic | Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) |
| Weight | 0.21 kg | 0.46 lb |
