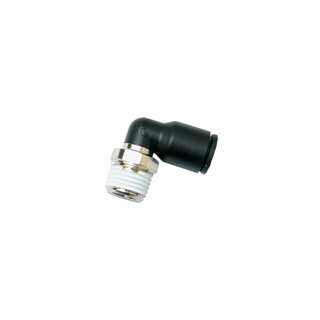

3109 12 17 Stud Elbow: 12mm Tube to 3/8 BSPT – Durable & Precise Fitting
$48.24
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
The 3109 12 17 stud elbow is a precision-engineered fitting designed to connect a 12mm tube to a 3/8″ BSPT threaded port effectively. This versatile elbow features durable construction and precise threading for a secure and leak-free connection. Offering superior strength and reliability, this stud elbow is suitable for a wide range of industrial applications where a connection between different sizes of tubing and BSPT threads is required.
Crafted from high-quality materials, this stud elbow ensures longevity and performance in demanding environments. Its compact design allows for easy installation in tight spaces or complex systems. The precise dimensions and sturdy build of the 3109 12 17 stud elbow make it an essential component in fluid systems, pneumatic applications, hydraulic systems, and more. Whether you are working on a DIY project or a professional installation, this fitting provides a seamless transition between tube and thread, ensuring efficient fluid handling and system functionality.
Additional information
Product Specifications
| Part Number | 3109 12 17 | Brand | Parker |
| Product Type | Pneumatic Push-In Fittings – LF 3000 | Product Series | LF 3000 |
| Quantity per Box | 10 | Configuration | Tube to Port |
| Division | Low Pressure Connectors Europe Division | Industry | Industrial & Chemical Processing | Power Generation & Renewable Energy | Industrial Manufacturing Equipment | Electronics & Semiconductor | Off-Road Machinery | Transportation |
| Body Material | Technical Polymer | Gripping Ring Material | Stainless Steel |
| Seal Material | NBR | Vacuum Pressure Rating | 755 mm-Hg |
| Shape | Elbow 90° | Connection 1 Size | 12 MM (O.D) | 12 mm (O.D) |
| Connection 2 Size | R 3/8 | Hex Size | 17 |
| Product Style | Stud Fitting | Technology | Fluid & Gas Handling |
| Maximum Operating Temperature | 80 °C | Minimum Operating Temperature | -20 °C |
| Connection 2 Type | Male BSPT | For Fluid Type | Other fluids: please consult us | Compressed Air |
| Hex Type | Hexagon Metric | Connection 1 Type | Tube |
| Weight | 0.022 kg |
