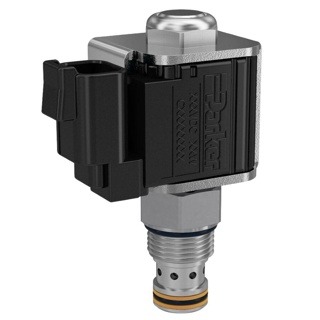

2/2 Way N.C.Spool Valve
$420.98
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
Experience Parker’s powerful 2-way, 2-position spool-type solenoid valves exclusively in North America. These valves offer high flows of up to 75 lpm (20 gpm) and impressive pressures of up to 350 bar (5000 psi), presenting both normally-closed and normally-open options.
Additional information
Product Specifications
| Part Number | GS022200N | Brand | Parker |
| Configuration | Normally Closed | Division | Hydraulic Cartridge Systems Division |
| Function | 2-way | Wire Mesh Screen Included | No |
| Seal Material | Nitrile | Valve Material | All parts steel. All operating parts hardened steel |
| Maximum Operating Pressure | 350 bar | 5000 psi | Flow Rate | 5 GAL/MIN, 19 L/MIN | 5 Gal/min | 19 L/min |
| Maximum Flow Rate | 5 Gal/min | 19 L/min | Leak Rate | 82 CC/min @ 3000 PSI (210 BAR) cm3/min |
| Maximum Inlet Pressure Rating | 350 bar | 5000 PSI, 350 BAR | 5000 psi | Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 |
| Cavity Size | C09-2 | Maximum Operating Temperature | +250 °F | +121 °C |
| Operating Temperature | -30 to +250 °F | -34 to +121 °C | Minimum Operating Temperature | -34 °C | -30 °F |
| Response Time | 50 ms | Coil Nut Tightening Torque | 3 lb-ft | 4.1 Nm |
| Installation Torque | 22 lb-ft | 30 Nm | Actuation Type | Electrical |
| Coil Type | 1/2″ Super Coil | Operation Type | Solenoid operated |
| Mounting Type | Screw in cartridge valve | For Fluid Type | Mineral-based or synthetic hydraulic fluids |
| Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) | Input Voltage | 85% of rated voltage at 72°F (20°C) min |
| Weight | 0.31 kg | 0.14 lb |
