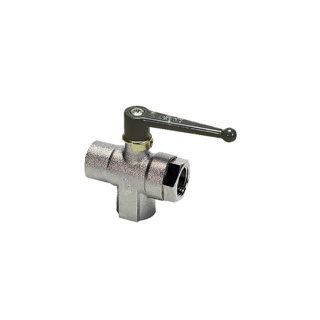

0482 06 13 Ball Valve 1/4 BSP 3-Way L-Port for Industrial Fluid Control
$94.46
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
The 0482 06 13 Ball Valve is a high-quality 3-way L-port valve designed for efficient fluid control in industrial applications. With a 1/4″ BSP connection, this valve is versatile and compatible with various piping systems. Its robust construction ensures durability and long-lasting performance, even in demanding environments. The L-port design allows for smooth and precise diverting or mixing of fluid flow, providing flexibility in system configurations.
Ideal for use in hydraulic, pneumatic, and plumbing systems, this ball valve offers reliable operation and leak-free performance. The compact size and easy installation make it suitable for both new installations and replacement projects. The ergonomic handle allows for easy manual operation, while the corrosion-resistant materials ensure a maintenance-free experience. Whether you need to control, divert, or mix fluid flow, the 0482 06 13 Ball Valve is a reliable and efficient solution for your industrial fluid control needs.
Additional information
Product Specifications
| Part Number | 0482 06 13 | Brand | Parker |
| Product Type | Ball Valves | Universal and Universal Customised Series | Product Series | Universal Series |
| Diameter Nominal (DN) | 6 | Connection 1 Thread Size (metric) | G1/4 |
| Quantity per Box | 5 | Configuration | 2/2 |
| Division | Low Pressure Connectors Europe Division | Function | 2-Way |
| Handle | ZAMAK | Industry | Industrial Manufacturing Equipment |
| Seat Material | Rilsan Graphited | Body Material | Nickel Plated Brass |
| Stem Material | Brass | Seal Material | NBR |
| Stem Seal Material | NBR | O-Ring Material | NBR |
| Ball Seal Material | NBR | Specifications Met | DI: 97/23/EC (module PED A – diameters greater than 25 mm) | DI: 2006/42/EC (Machinery Directive) | REACH | RoHS |
| Region of Origin | France | Maximum Operating Pressure | Vacuum to 20 bar | Vacuum to 290.08 psi | Vacuum to 2 MPa |
| Shape | 3/3 right angled ball valve female | Right angled | Connection Size | G1/4 |
| Orifice Size | 6 mm | Product Style | Female Ball Valve |
| Connection 1 Thread Style | BSPP | Technology | Fluid & Gas Handling | Process Control | Pneumatics |
| Minimum Operating Temperature | Up to -40 °C/°F without movement of the handle | -4 °F | -20 °C | Maximum Operating Temperature | 80 °C |
| For Fluid Type | Inert Gas | Air | Water | Mounting Type | In-Line |
| Operation Type | Lever-operated | Handle Type | Grey long lever (ZAMAK) |
| Actuation Type | Manual | Connection Type | BSPP |
| Weight | 0.200 kg | 0.441 lb |
