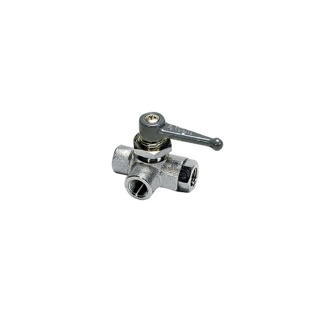

0452 06 13 Ball Valve 1/4 BSP 3-Way Panel Mounting for Precise Flow Control
$129.94
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
The 0452 06 13 Ball Valve is a versatile plumbing component designed for various applications. This ball valve features a 1/4 inch BSP (British Standard Pipe) connection and a 3-way configuration with a panel mounting option. Crafted from high-quality materials, this ball valve ensures durability and reliability in controlling the flow of liquids or gases. Its precision-engineered design allows for smooth operation and leak-free performance, making it ideal for industrial, commercial, or residential use. The 3-way functionality adds flexibility, enabling the diversion of flow in multiple directions with ease. Whether used in hydraulic systems, water distribution, or HVAC applications, the 0452 06 13 Ball Valve offers efficient flow control and dependable service. Install this ball valve confidently to enhance your plumbing systems with precision and functionality.
Additional information
Product Specifications
| Part Number | 0452 06 13 | Brand | Parker |
| Product Type | Ball Valves | Universal and Universal Customised Series | Product Series | Universal Series |
| Diameter Nominal (DN) | 6 | Connection 1 Thread Size (metric) | G1/4 |
| Quantity per Box | 5 | Configuration | 3/2 |
| Division | Low Pressure Connectors Europe Division | Function | 3-Way |
| Handle | ZAMAK | Industry | Industrial Manufacturing Equipment |
| Seat Material | Rilsan Graphited | Body Material | Nickel Plated Brass |
| Seal Material | NBR | O-Ring Material | NBR |
| Ball Seal Material | NBR | Stem Seal Material | NBR |
| Stem Material | Brass | Specifications Met | DI: 97/23/EC (module PED A – diameters greater than 25 mm) | REACH | DI: 2006/42/EC (Machinery Directive) | RoHS |
| Region of Origin | France | Maximum Operating Pressure | Vacuum to 20 bar | Vacuum to 290.08 psi | Vacuum to 2 MPa |
| Shape | Right angled | 3/2 right angled plane panel mountable ball valve female | Connection Size | G1/4 |
| Orifice Size | 6 mm | Product Style | Vented panel mountable Female Ball Valve |
| Connection 1 Thread Style | BSPP | Technology | Fluid & Gas Handling | Process Control | Pneumatics |
| Minimum Operating Temperature | Up to -40 °C/°F without movement of the handle | -4 °F | -20 °C | Maximum Operating Temperature | 80 °C |
| Mounting Type | Panel-Mountable | For Fluid Type | Inert Gas | Air | Water |
| Actuation Type | Manual | Operation Type | Lever-operated |
| Handle Type | Grey long lever (ZAMAK) | Connection Type | BSPP |
| Weight | 0.206 kg | 0.454 lb |
