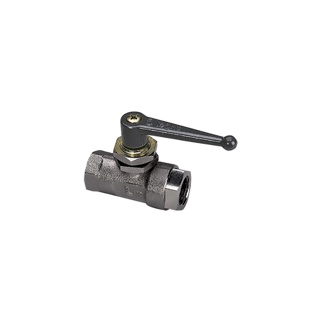

0446 10 17 Ball Valve 2-Way 3/8 BSP PANMTG – Reliable Plumbing Solution
$82.16
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
The 0446 10 17 Ball Valve is a reliable and efficient solution for your plumbing needs. This 2-way valve features a 3/8″ BSP PANMTG connection, ensuring compatibility with a wide range of applications in residential, commercial, and industrial settings. Constructed with high-quality materials, this ball valve offers durability and long-lasting performance. Its sturdy design provides a secure shut-off mechanism, allowing you to control the flow of water, gas, or other fluids with ease.
The compact size and easy installation make this ball valve a convenient choice for various projects, from simple household repairs to complex plumbing systems. Whether you need to regulate the water supply in your home or manage fluid flow in an industrial environment, the 0446 10 17 Ball Valve delivers reliable operation and peace of mind. Trust this versatile and robust valve to meet your plumbing needs efficiently and effectively, providing a reliable solution for your fluid control requirements.
Additional information
Product Specifications
| Part Number | 0446 10 17 | Brand | Parker |
| Product Type | Ball Valves | Universal and Universal Customised Series | Product Series | Universal Series |
| Diameter Nominal (DN) | 10 | Connection 1 Thread Size (metric) | G3/8 |
| Quantity per Box | 2 | Configuration | 3/2 |
| Division | Low Pressure Connectors Europe Division | Function | 2-Way |
| Handle | ZAMAK | Industry | Industrial Manufacturing Equipment |
| Body Material | Nickel Plated Brass | Seat Material | Rilsan Graphited |
| Ball Seal Material | NBR | Stem Material | Brass |
| Stem Seal Material | NBR | Seal Material | NBR |
| O-Ring Material | NBR | Specifications Met | DI: 97/23/EC (module PED A – diameters greater than 25 mm) | DI: 2006/42/EC (Machinery Directive) | RoHS | REACH |
| Region of Origin | France | Maximum Operating Pressure | Vacuum to 20 bar | Vacuum to 290.08 psi | Vacuum to 2 MPa |
| Shape | 2/2 in-line panel montable ball valve female | In-line | Orifice Size | 10 mm |
| Connection Size | G3/8 | Product Style | Vented lockable Female Ball Valve |
| Connection 1 Thread Style | BSPP | Technology | Fluid & Gas Handling | Process Control | Pneumatics |
| Minimum Operating Temperature | Up to -40 °C/°F without movement of the handle | -4 °F | -20 °C | Maximum Operating Temperature | 80 °C |
| Handle Type | Grey long lever (ZAMAK) | For Fluid Type | Inert Gas | Air | Water |
| Actuation Type | Manual | Mounting Type | Panel-Mountable |
| Operation Type | Lever-operated | Connection Type | BSPP |
| Weight | 0.294 kg | 0.648 lb |
